 		Previous Speedster Next Speedster

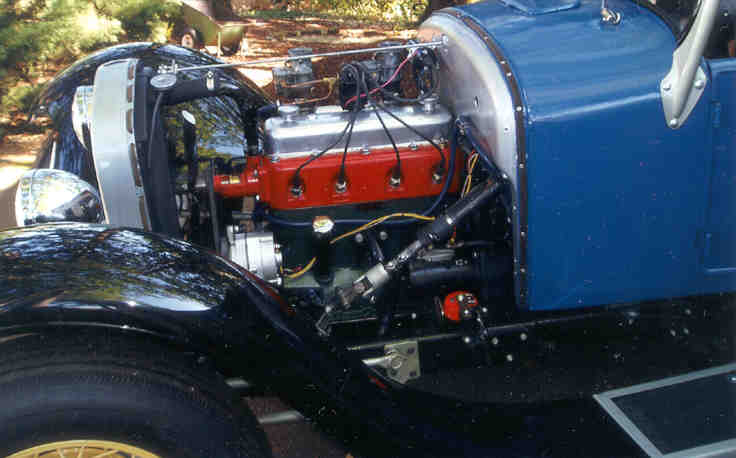

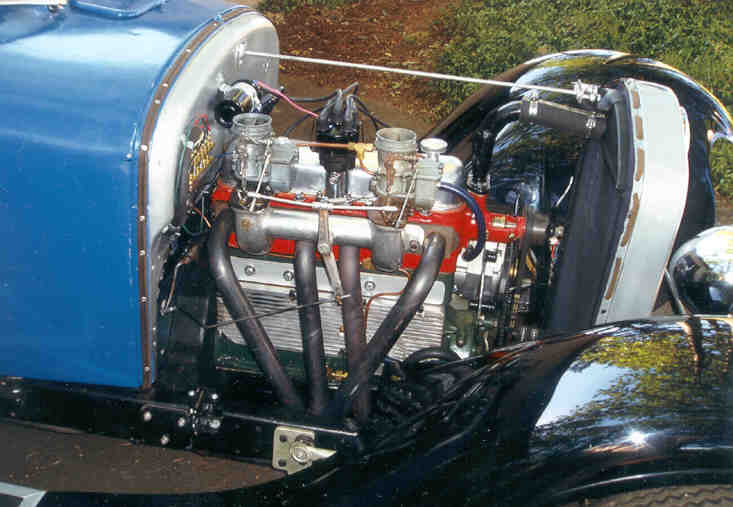

Model A Frame, Z'ed 6.5" in Rear, Suicide Front Suspension, 7" Drop. '40 Front Ford Brakes, '87 Chevy Pickup 3.78 Rear End & Brakes. Borg Warner T5 Transmission. 25% Overdrive in 5th. No-Spin Clutch, '35 Ford Wheels with 6.00x16 Tires. Saginaw steering, crossover to right side with "draglink". Model A Block, .060 over Crank -.010"/.010"- drilled for full pressure oiling, Modified "B" Pump. Cragar OHV assembly. Dual Stromber 97 Carburetors. "Nu-Rex" ignition, 12V system with alternator and 12V Model A Starter. Special built "Brassworks" radiator, 10lb Pressure Cap, Brierley 1R Camshaft... peaks at 5000 RPM. Hand fabricated aluminum 4 section hood. Lightened flywheel (34 lbs) Open Drive line, Spicer U-Joints. 4-Bar Suspension Front and Rear. 1" tubing. Fuel tank is 12gal with pump inside from 87 Chev Pickup. LOTS OF FUN !!

Thank You for the Photos - Beryl Brown - Gene Byrnes - Click to Enlarge

Previous Speedster Next Speedster
