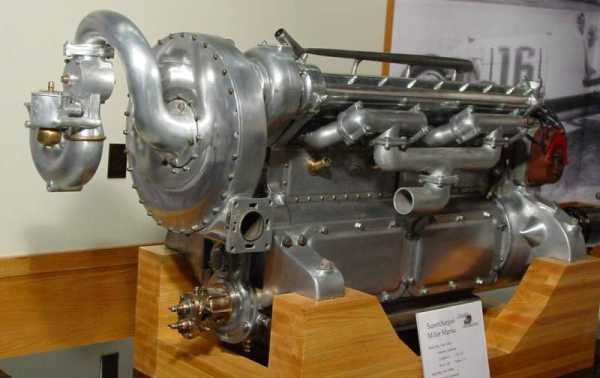

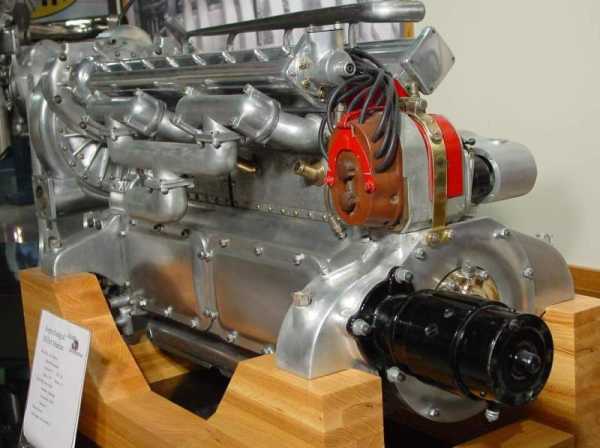

Miller Supercharged Marine #22
| | |||||||||||
| All Thumbnail Index | All Alphabetic Index | ||||||||||||
| Previous Engine | Next Engine | ||||||||||||
 | |||||||||||||
|
Block Manufacturer : Miller
Block Material : Aluminum Crankcase Cylinders : I-8 Cubic Inches : 124 Bore : 2.375 Stroke : 3.5 Block Year : 1925 |
Head Manufacturer : Miller

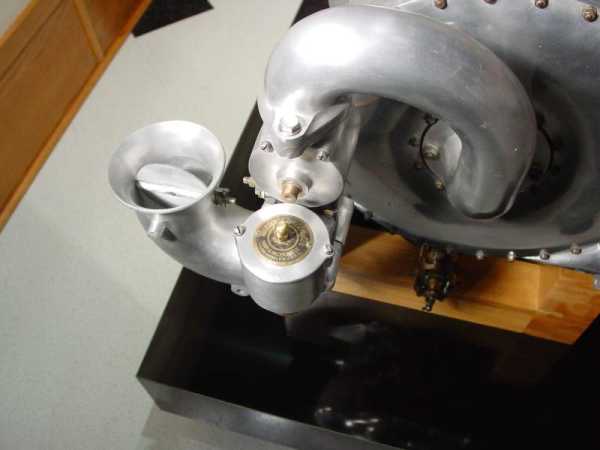

Head Material : iron Cam : DOHC Cam Drive : Gear Driven Carbs : 1 Miller Updraft Carb on Supercharger HeadYR : 1925 Era : | ||||||||||||
| Description :

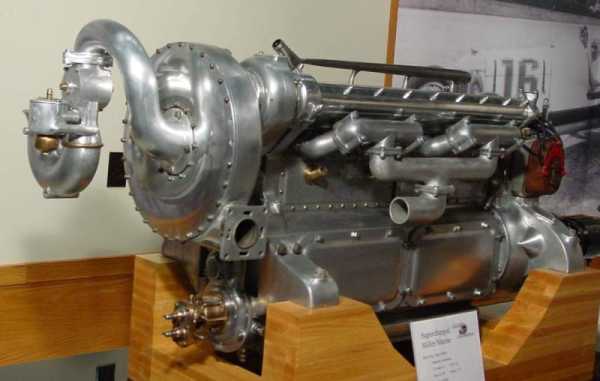

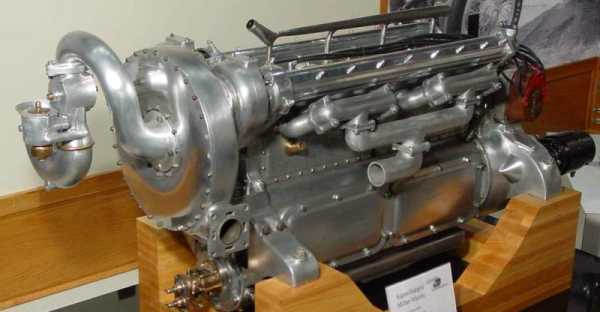

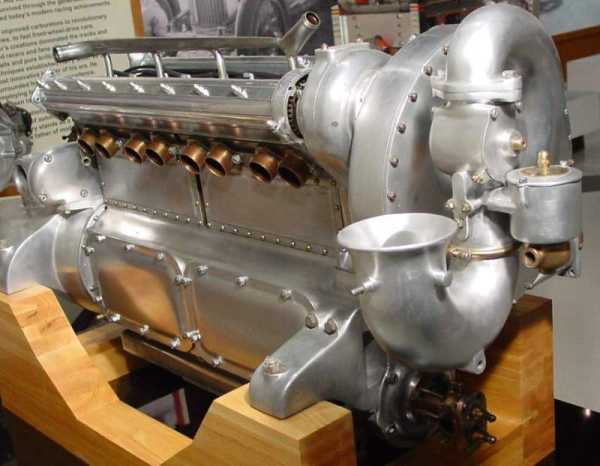

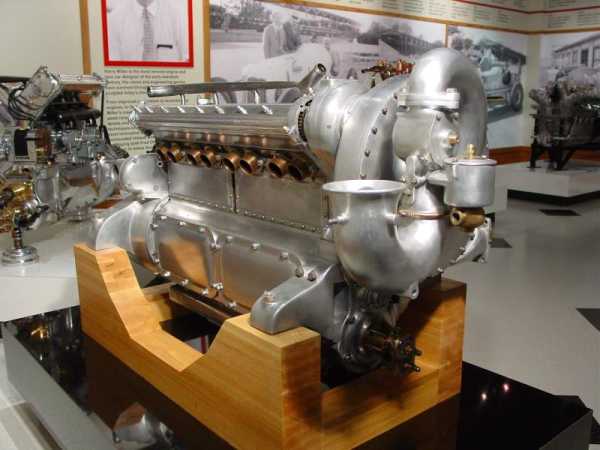

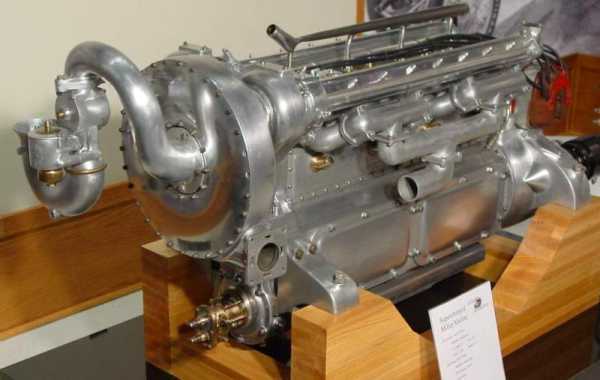

This engine was specifically built by Harry Miller for use in hydroplanes. Only four were produced, and this is the only complete Miller 122 marine in existence. The supercharger is cam driven and water cooled. Two versions of this engine were available: 122 and 138 cubic inches | |||||||||||||
|
Please Email us if you know more about this Engine E005@museumofamericanspeed.com | |||||||||||||
